Waacab Solar DC Cables – TUV Certified Tinned Copper PV Cables
Direct supply of high-efficiency, TUV certified, and weather-resistant Solar DC cables (1.5 sq mm to 240 sq mm) manufactured by Waacab. Distributed in Chhattisgarh and Maharashtra, and dispatched directly from our Raipur and Pune stock points.

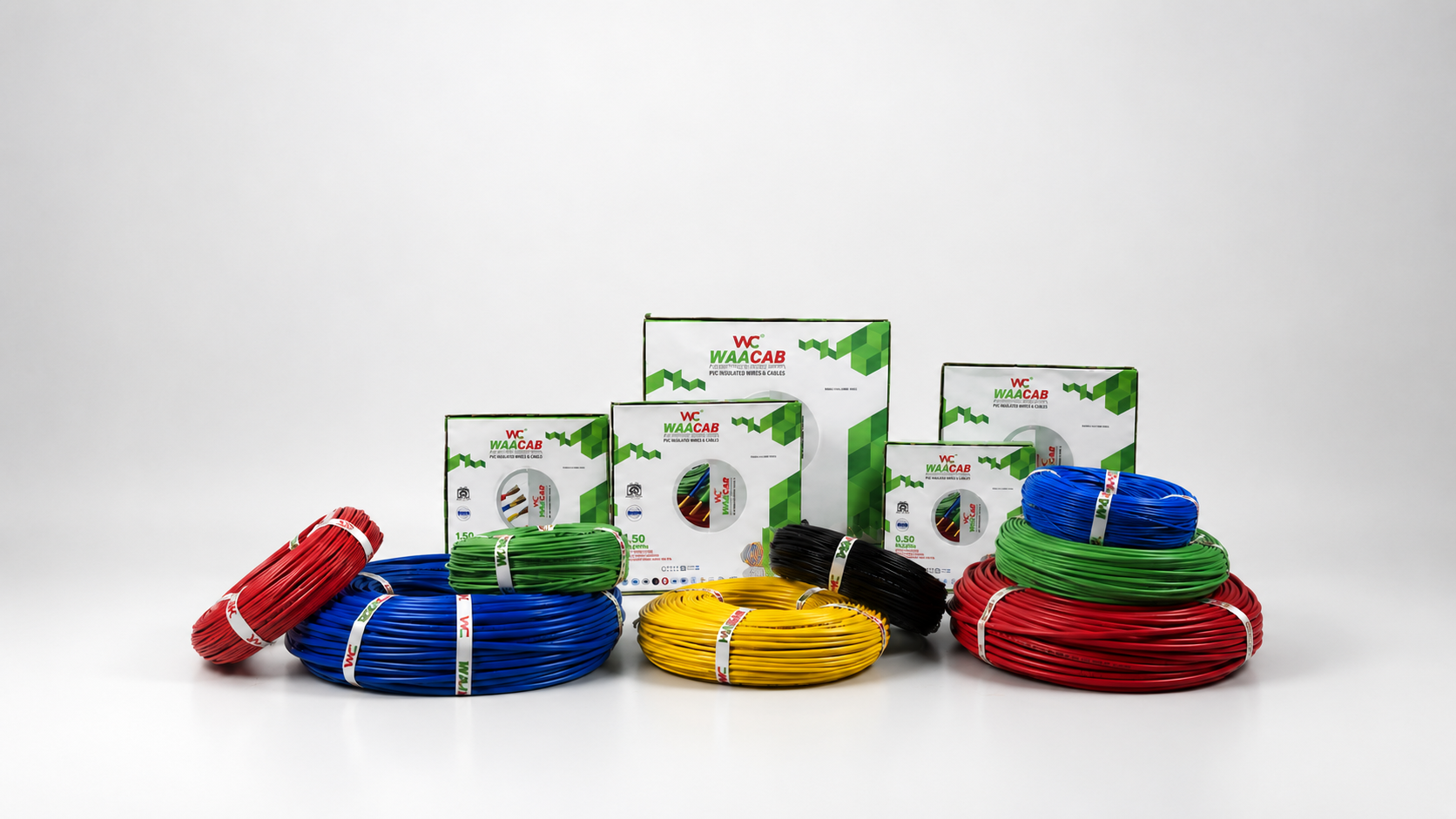

Direct Supply of High-Quality Waacab Solar DC Cables
As a key multi-brand distribution partner, Variate Solar coordinates warehousing, technical support, and logistical delivery for Waacab’s advanced photovoltaic cabling technologies across Chhattisgarh and Maharashtra.
Variate Solar, distributing through Aryam Sustainables, is the key channel partner for Waacab Wires and Cables in Chhattisgarh. We supply TUV-certified (EN 50618:2014) and ALMM-compatible Solar DC cables (1.5 sq mm to 240 sq mm) directly from our Raipur warehouse, guaranteeing rapid 48-to-72-hour dispatch for local installers, solar dealers, and PM Surya Ghar rooftop projects.
Waacab Solar DC Cable Features
Manufactured in state-of-the-art facilities utilizing electron-beam cross-linking technology, Waacab cables are engineered for maximum reliability and lifetime performance under harsh environmental conditions.
Tinned Copper Conductor
Class 5 flexible electrolytic tinned copper conductor provides maximum corrosion resistance and excellent electrical conductivity.
XLPO Double Insulation
Electron-beam cross-linked polyolefin double insulation prevents current leakage, thermal breakdowns, and insulation cracking.
EN 50618:2014 Compliance
Designed and certified in strict compliance with the EN 50618 European standard, guaranteeing compatibility with all grid-tied PV systems.
UV & Weather Proof
UV-stabilized, ozone-resistant, and flame-retardant sheath designed to withstand the extreme solar radiation levels of central India.
Waacab Solar DC Cable Datasheet
Review the detailed electrical parameters and mechanical specifications of Waacab’s EN 50618:2014 compliant solar DC cable family.
| Nominal Cross Sectional (Sq. mm) | Approx. Cable Diameter (mm) as per EN 50618 | Current Carrying Capacity @ Amb. 60°C | Max. Conductor Resistance at 20°C (Ω/km) | ||
|---|---|---|---|---|---|
| Single Cable in Air (Amps) | Single Cable on Surface (Amps) | Two Loaded Cables Touching (Amps) | |||
| 1.5 | 5.0 | 30 | 29 | 24 | 13.7000 |
| 2.5 | 5.3 | 41 | 39 | 33 | 8.2100 |
| 4.0 | 5.9 | 55 | 52 | 44 | 5.0900 |
| 6.0 | 6.6 | 70 | 67 | 57 | 3.3900 |
| 10.0 | 7.5 | 98 | 93 | 79 | 1.9500 |
| 16.0 | 8.7 | 132 | 125 | 107 | 1.2400 |
| 25.0 | 10.5 | 176 | 167 | 142 | 0.7950 |
| 35.0 | 11.9 | 218 | 207 | 176 | 0.5650 |
| 50.0 | 13.9 | 276 | 262 | 221 | 0.3930 |
| 70.0 | 15.7 | 347 | 330 | 278 | 0.2770 |
| 95.0 | 17.8 | 416 | 395 | 333 | 0.2100 |
| 120.0 | 19.6 | 488 | 464 | 390 | 0.1640 |
| 150.0 | 21.7 | 566 | 538 | 453 | 0.1320 |
| 185.0 | 24.4 | 644 | 612 | 515 | 0.1080 |
| 240.0 | 27.3 | 755 | 736 | 620 | 0.0817 |
Lived Experience & Common Pitfalls in Solar DC Cable Selection
Understanding the silent failure points of cheap solar cables and how Variate Solar guarantees project longevity.
Warning: Silent Failure Points of Legacy Cables
- Copper-Clad Aluminum (CCA) Substitutions: Many off-brand distributors supply CCA instead of 100% tinned copper. Aluminum has 1.6x higher resistivity than copper, leading to critical power losses, overheating, and mechanical fatigue in central Indian heat.
- Standard PVC/Rubber Insulation Degradation: Non-cross-linked PVC insulation degrades rapidly under UV exposure. In Chhattisgarh, where ambient temperatures regularly hit 45°C+, standard PVC cables harden, crack, and trigger earth faults within 24 to 36 months, violating CSPDCL safety net-metering norms.
- Under-crimp Terminal Resistance: Loose connections or improper cable diameters introduce micro-resistances. This generates hotspots at the DC junction box (DCDB) which are undetectable without thermal imaging or continuous RMS telemetry monitoring (such as through Enercog).
“Selecting the right DC cable size and insulation quality is the single most overlooked factor in PV project longevity. A marginal saving on DC cables can lead to a 3% to 5% system yield loss over a 10-year period due to continuous IR drop, not to mention the fire hazards. This is why we exclusively distribute Waacab’s electron-beam double-insulated tinned copper cables. Sourced and billed under Aryam Sustainables, we maintain raw stock from 4.0 sq mm to 16.0 sq mm at our Raipur yard to support instant net-metering compliance for regional EPC projects.”
Logistics & Local Availability under Aryam Sustainables
Local billing, fast shipping, and direct engineering support from Raipur and Pune warehouses.
Direct Stock and Local Billing in Chhattisgarh
To prevent logistical delays, damage during long-distance transit, and complex inter-state compliance requirements, Variate Solar maintains local inventory of Waacab Solar DC Cables. Sourced and distributed under our group company, Aryam Sustainables, we provide direct GST billing and technical documentation from our Raipur yard.
This allows local installers and solar developers in Raipur, Bilaspur, Durg-Bhilai, Korba, and Maharashtra (Pune) to secure quick local dispatch within 48 to 72 hours. All Waacab products are supplied with original manufacturer test reports and certifications, facilitating quick Net Metering approvals and CSPDCL inspections.
